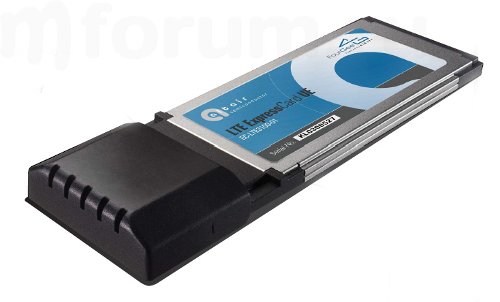

Altair FourGee 3100/6200 - Category 3 LTE ExpressCard UE

Altair LTE ExpressCard UE <- Устройства LTE <- Все об LTE

Features

• ExpressCard34 form factor
• 3GPP Rel.8 compliant, rel.9.0 software upgradeable
• Category-3 throughputs, 100 Mbps DL / 50 Mbps UL
• Compliant with 36.101 radio performance specifications
• Very low power consumption
• Peak 400 mA. power class - 3, 23 dBm output power (no external poer required)
• Average 200 mA (full UL/DL throughput), 100 mA (typical use case)
• Available in select FDD / TDD bands in the range of 700 MHz - 2.7 GHz
• Bandwidth supported 10 / 20 MHz
• Full-featured, IOT tested LTE L1 and protocol stack
• Connection manager and diagnostics GUI for Windows
• Available today (as to 10.05.2010)

Key Benefits

• Compact, lightweight and laptop USB powered
• Ideal for lab, indoor and outdoor IOT and trials
• Turn key, producible hardware reference UE platform
