SistelNetworks SN40 HeNodeB  -- малые соты

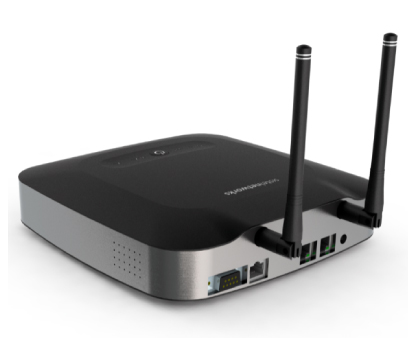

 SistelNetworks SN40 HeNodeB, фото из официальной брошюры, 2014.02

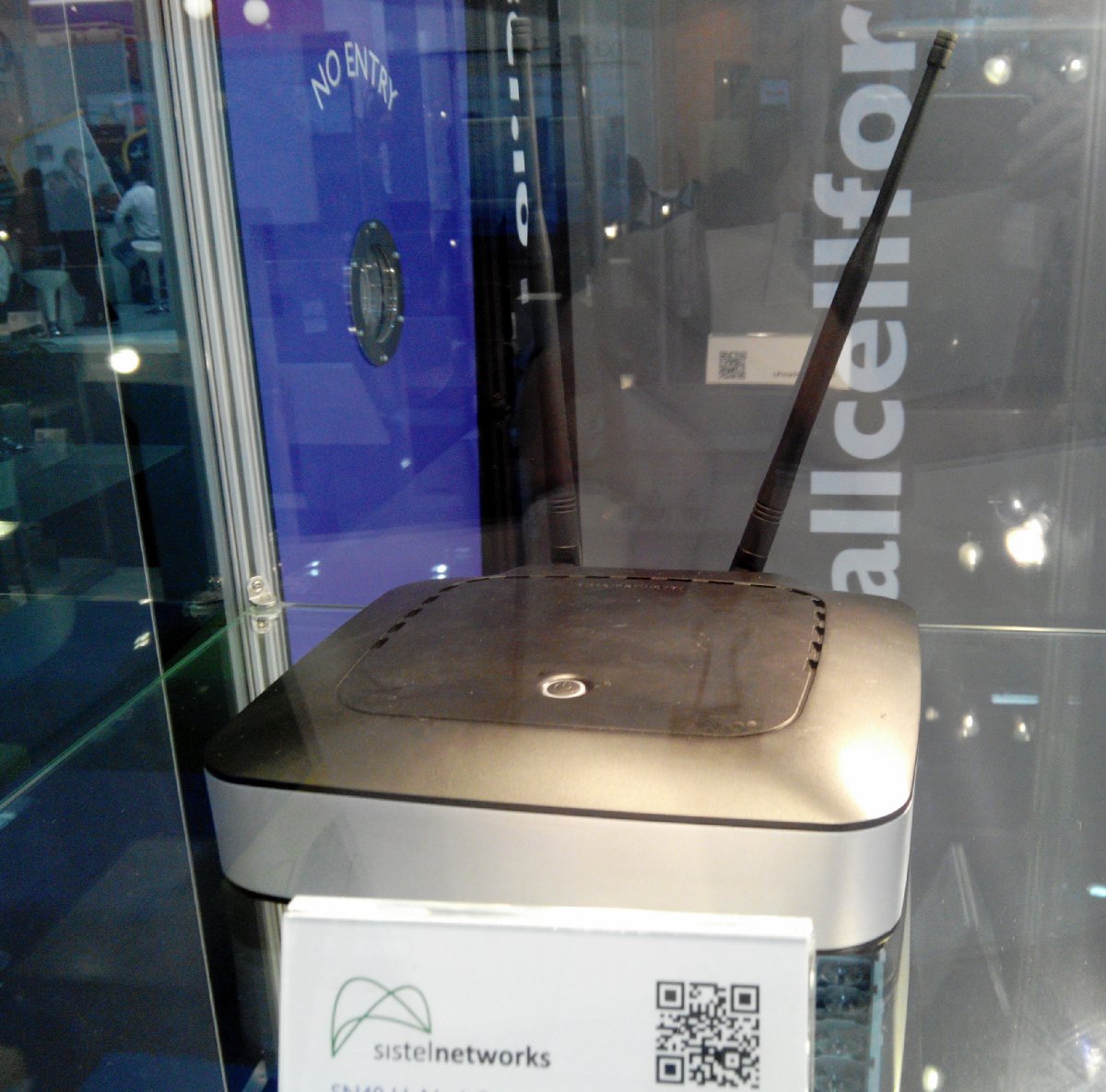

 SistelNetworks SN40 HeNodeB на стенде Small cell Forum на MWC2014

Спецификация:

RF Antennas: 2 SMA females

Max Tx power: +13 dBm

Connectivity: WAN: Ethernet 10/100/1000 RJ-45 ; LAN: Ethernet 10/100/1000 RJ-45

GPS anntena connector: SMA female connector

DC Power: 12 V DC, 5.5A, (external power supply 100-240VAC input)

Operating Temperature: 0C to 40ºC, Humidity 5% to 95% RH

Storage Temperature: -20ºC to +70ºC (-4ºF to +158ºF)

Ingress Protection: IP40

Size (WxHxD): 20 x 20 x 5 cm / 7,8 x 7,8 x 2 “

Weight: 900 gr. / 1 lb. 15 oz.

Frequency band combinations (FDD):

Upper bands:

1920-1980 / 2110-2170 ; 1710-1750 / 2110-2155 ; 2500-2570 / 2620-2690; 1850-1910 / 1930-1990

Lower bands:

777-787 / 746-756 ; 777-787 / 746-756 ; 777-787 / 746-756 ; 824-849 / 869-894

3GPP LTE Rel.9 protocols supported:

- GTP - GPRS Tunneling Protocol

- eGTP - Evolved GTP

- LTE MAC - LTE Media Access Control

- LTE PDCP - LTE Packet Data Convergence Protocol

- LTE RLC - LTE Radio Link Control

- LTE RRC - LTE Radio Resource Control

- S1AP - S1 Application Protocol

- X2AP - X2 Application Protocol

Other protocols

- TR069 - Management&Operation (M&O) Agent

- TR169 - TR069 FemtoCell Extension

- FIPA - Software Agent Communications Methods

Официальная страница на сайте производителя. Проверена 2014.02

2014.03 Официальная брошюра, .pdf
