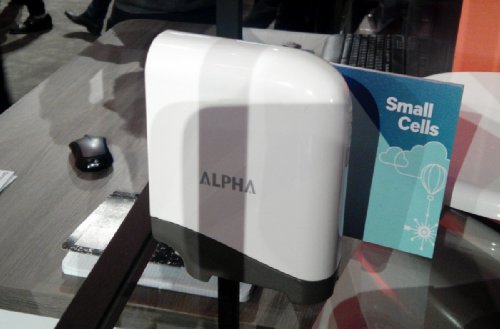

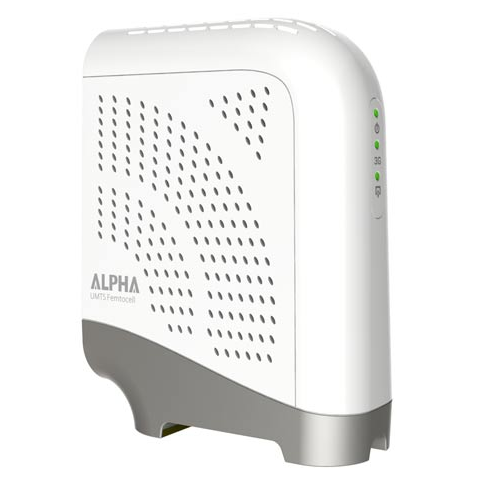

Alpha Networks WHU-FAP04  --  малые соты 3G / LTE

 2014.02

Specs

Simultaneous Calls: Up to 8 simultaneous calls

Operating Band & Frequency : Band 1

Operating Frequency: UL Frequency 1920 ~ 1980 MHz / DL Frequency 2110 ~ 2170 MHz

Maximum Transmit Power : +13 dBm

Performance :

HSPA: Up to 14.4Mbps downlink & 5.7Mbps uplink

HSPA+: Up to 21Mbps downlink & 5.7Mbps uplink

Support up to 8 users

Max output power 13 dBm

Core Network Interface : 3GPP luh

Broadband Security : IPSec (DES, 3DES, AES)

Remote Device Management : DSL Forum TR-069

Interfaces: Ethernet, DC power, Reset Button, U-SIM

88mm x 75mm x 28mm

Operating Temparature 0~40C

Operation Humidity: 10%-90% RH non condensing

Site: http://www.alphanetworks.com/_english/01_product/01_detail.php?pid=177&ffid=39&appid=62
