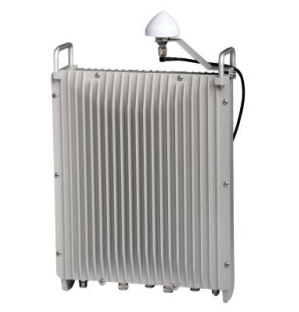

Airspan Air4Gs  -- малые соты

Спецификация:

Operational Frequency Bands: 1.4, 2.3, 3.4-3.5, 3.5-3.6, 3.6-3.7 GHz

Duplex: TDD

Channel BW: 3.5 MHz, 5 MHz, 7 MHz, 10 MHz

Max Transmit Power: 2 x +33 dBm

MCS Support: QPSK, 16-QAM, 64-QAM

Synchronization: GPS

MIMO Matrix A and B

IP and Ethernet CS (including VLAN tagging/ untagging)

VoiceMAXe support

Fractional Frequency Reuse (FFR)

Standalone mode

Profi le C (working with ASN GW)

Antenna Confi gurations: Dual Slant antennas, 65 and 90 degrees sector antennas, Omni and Dual Omni antennas, antennas with Manual Elecctric Tilt (MET)

Dimensions: 416 x 336 x 107 mm / 16.4 x 13.2 x 4.2 in

Weight: 10.5 kg / 23 lb

Power Consumption: 110 Watts max, under 90 Watt average (assuming DL/UL ratio of 29/18)

Operating Temperature Range: -40°C to +55°C / -40°F to 131°F

IP Rating: IP66

Подробнее в брошюре "Air4Gp. Power and Functionality in a Pico Cell", .pdf, 2013.06

Официальная страница на сайте производителя. Проверена 2014.02
