Samsung Exynos 4210 -- Процессоры Samsung -- Samsung Electronics Co. Ltd.  -- Компоненты-процессоры

Однокристалльный, двухъядерный, может работать в связке с графическим чипом Mali-400 и оперативной памятью DDR-2.

Exynos 4210 is a SoC developed for mobile devices and it delivers features like a CPU with dual-core capability, highest memory bandwidth, 1080p video decoding and encoding H/W, 3D graphics H/W and SATA/USB (i.e. high-speed interfaces). It is claimed that Exynos 4210 provides the world’s first native triple display, which delivers support simultaneously for WSVGA resolution of two main LCD displays and 1080p HDTV display throughout HDMI. This facility has been achieved through the capability of Exynos 4210 to support separate post processing pipelines. Exynos 4210 also uses the Cortex-A9 dual core CPU, which yields 6.4GB/s memory bandwidth that is suitable for heavy traffic operations such as 1080p video encoding and decoding, 3D graphics display and native triple display. By integrating IPs(Intellectual Properties) such as DDR3 interfaces that will prepare bit cross with DDR2 (world’s first), 8 channels of I2C for a variety of sensors, SATA2, the GPS baseband and a variety of USB derivatives, Exynos 4210 is able to lower its BOM (Bill of Materials). Furthermore, Exynos 4210 provides increased system performance through the support to industry’s first DDR based eMMC 4.4 interfaces. Read more: http://www.differencebetween.com/difference-between-samsung-exynos-4210-and-vs-nvidia-tegra-2/#ixzz1b1HRxldJ

Краткие характеристики

Процесс: 45 нм

CPU: 2 x ARM Cortex A9 w/ MPE @ 1.2 ГГц

GPU: ARM Mali-400 MP4

Шина данных: 2 x 32 bit LPDDR2

Доступность:

С 2011 года

Примеры устройств с использованием процессора  Samsung Exynos 4210 (ARM Cortex-A9)

Meizu MX, 1,4 ГГц, 2011.12

Samsung Galaxy Tab 7.7 планшет, 1.4 ГГц, 2011.08

Samsung Galaxy S II , смартфон, 1.2 ГГц, 2011.04

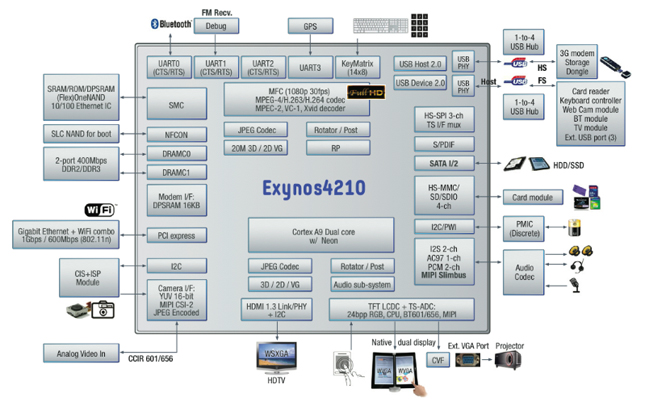

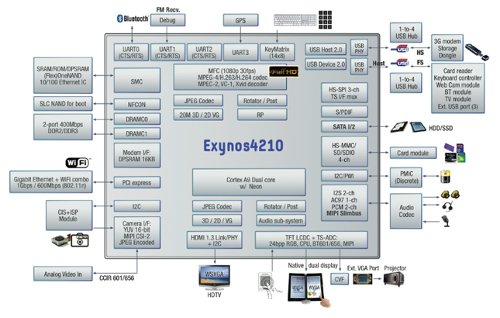

Устройство (структурная схема)
